Main parameters

Brand

Dongfeng

No.

229

Model

DFL3310AX14A1 Right hand drive

Dimension (mm)

11090×2500×3450,3760

G.V.W (kg)

31000

Van dimension(mm)

8400×2300×1000

Dimension (mm)

15765,15700

F / R suspension(mm)

1500/1840,1500/1990,1500/2040,1500/2190

Curb weight (kg)

15105

Wheelbase (mm)

1850+4200+1350,1850+4600+1350,1950+4250+1350

Allowed person

2,3

Max speed ( / h)

80

Approach / departure angle

25/25,25/26,25/27,25/28

Axle payload (kg)

6500/6500/18000

Axle number

4

Chassis parameters

Chassis model

DFL3310A14

Name

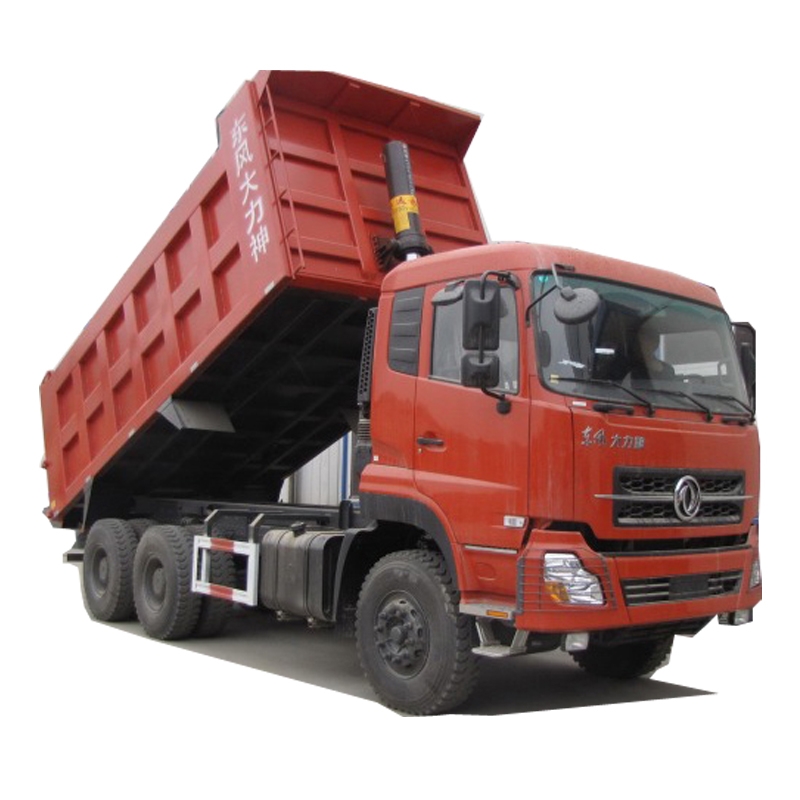

Dump truck chassis

Brand

Dongfeng

Manufacturer

Dongfeng

Dimension (mm)

9900,10970,11740,10050×2500×3030,3600,3690

Tire number

12

Approach / departure angle

30/34

Tire model

11.00R20

Spring number

9/9/13,10/10/13

Front tread (mm)

2040/2040

Fuel type

Rear tread (mm)

1850/1850

Emission standard

GB3847-2005,GB17691-2005 Euro3

Engine model

Manufacturer

Displacement

Power

L375 30

Dongfeng Motor

8900ml

276kw 375
